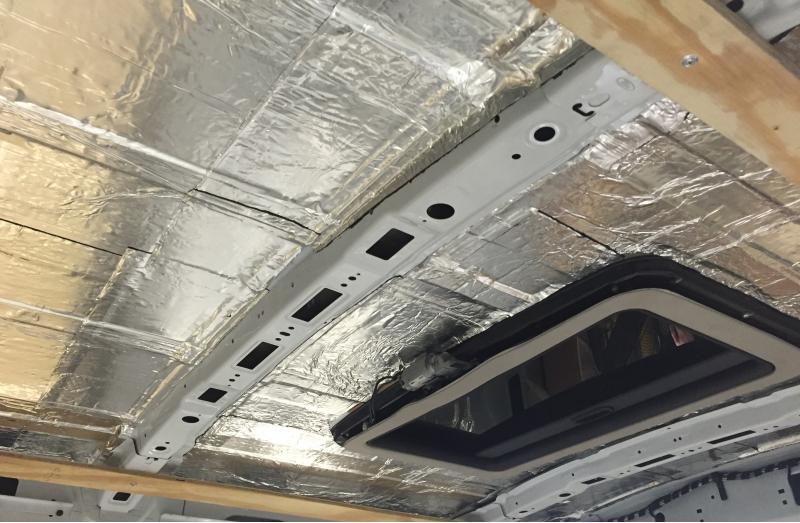

STANDARDHushMat Custom Vehicle Sound Deadening and Thermal Insulation Roof Kit insulates your vehicle roof from radiant heat and rattles.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material, light weight HushMat Ultra.
Your Pick Up has power, performance, and style, but the roof can allow the cabin to heat up if it does not have the proper automotive heat shield. The roof is very thin metal and sun, rain and the elements hit it repeatedly. HushMat auto insulation is proven in an independent study to lower the temperature by over 40 percent. The roof of your car can vibrate sounding more like a drum. When driving in a rain storm you hear a constant sound of rain hitting the thin metal roof. Overtime this gets annoying and uncomfortable. HushMat eliminates the noise by eliminating the vibration. On sunny days especially in the summer months radiant heat from sun elevates your roof temperature to over 180 degrees. All you have to do to test this is touch the roof. Do it very quickly because it will burn you. Install the HushMat custom roof insulation kit and reduce that heat from entering the Pick Up by over 40 percent. HushMat automotive sound deadening mat reduces this noise and heat gives you a more comfortable ride. HushMat sound deadening and thermal insulation material leads the automotive industry in ease of installation. It is also number 1 Rated in performance. Packaged specifically for your Pick Ups year, make and model roof to provide 100 percent insulation coverage. There are no holes in the material and no puzzle pieces to put together. Simply apply the HushMat Ultra material as shown in the Installation Guide. HushMat auto insulation material reduces road noise, exhausts noise, and insulates your Pick Up for a more comfortable ride for you and your passengers. Nothing beats the heat or noise like HushMat. For additional heat and sound insulation consider adding the HushMat Silencer Megabond one quarter inch foam to the back of your headliner. Silencer Megabond, part number 22410, added with HushMat Custom Pick Up Roof Kit provides an additional 30 percent insulation to your Pick Up.
| Download Name | File Size |
| HushMat Ultra Specification Sheet.pdf | 149.54KB |
| HushMat_Ultra 200-400-800 Hz Graph SAEJ1637.pdf | 23.13KB |
| ROOF and Headliner installation Instructions.pdf | 670.08KB |
| UPHOLSTERY_Roof_sellsheet_FINAL.pdf | 531.09KB |
| Damping Pad MSDS.pdf | 26.43KB |
| Make | Model | Years |
| Chevrolet | C10 Pickup | 1973 - 1974 |
| Chevrolet | C10 | 1975 - 1986 |
| Chevrolet | C20 Pickup | 1973 - 1974 |
| Chevrolet | C20 | 1975 - 1986 |
| Chevrolet | C30 Pickup | 1973 - 1974 |
| Chevrolet | C30 | 1975 - 1986 |
| Chevrolet | K10 Pickup | 1973 - 1974 |
| Chevrolet | K10 | 1975 - 1986 |
| Chevrolet | K20 Pickup | 1973 - 1974 |
| Chevrolet | K20 | 1975 - 1986 |
| Chevrolet | K30 Pickup | 1973 - 1974 |
| Chevrolet | K30 | 1977 - 1986 |
| Chevrolet | R10 | 1987 |
| Chevrolet | R20 | 1987 |
| Chevrolet | R30 | 1987 |
| Chevrolet | V10 | 1987 |
| Chevrolet | V20 | 1987 |
| Chevrolet | V30 | 1987 |
| GMC | C15/C1500 Pickup | 1973 - 1974 |
| GMC | C25/C2500 Pickup | 1973 - 1974 |
| GMC | C35/C3500 Pickup | 1973 - 1974 |
| GMC | K15/K1500 Pickup | 1973 - 1974 |
| GMC | K25/K2500 Pickup | 1973 - 1974 |
| GMC | K35/K3500 Pickup | 1973 - 1974 |
| Cold Flexibility | Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion |
| Color | Polymer - Black; Backing - Silver |
| Flammability | Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard |
| Hardness | 6.5 - 9.0mm ?ASTM D-5 |
| Part Type | Thermal Acoustic Insulation |
| Peel Strength | Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported. |
| R-Value | 7 |
| Safety | HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product. |
| Shelf Life | At least 6 months when stored at 40 degrees C or less |
| Specific Gravity | 1.47 (approx. 0.47 pounds per square foot) |
| Temperature Resistance | HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions. |
| Thickness | 1.5mm |
| Warranty | Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise. |
